Viair 480c Dual Pack Stealth Black Air Ride Bag Suspension Compressor

VIAIR 480C DUAL PACK STEALTH BLACK AIR RIDE BAG SUSPENSION COMPRESSOR PUMP TRAIN *****FREE SHIPPING*****

480C Stealth Black Dual Performance Value Packs include two 480C compressors, two heavy duty 40-amp relays and a 165 PSI cut-on, 200 PSI cut-off pressure switch. Each Dual Performance Value Pack comes with remote mount filter assemblies and mounting hardware.
Dual Performance Value Packs are rated to fill tank volumes
up to 10 gallons.

Note: Use thread sealant for proper installation.
Teflon tape is not recommended. Properly sealed,
recommended torque is 12 to 15 ft. lbs.

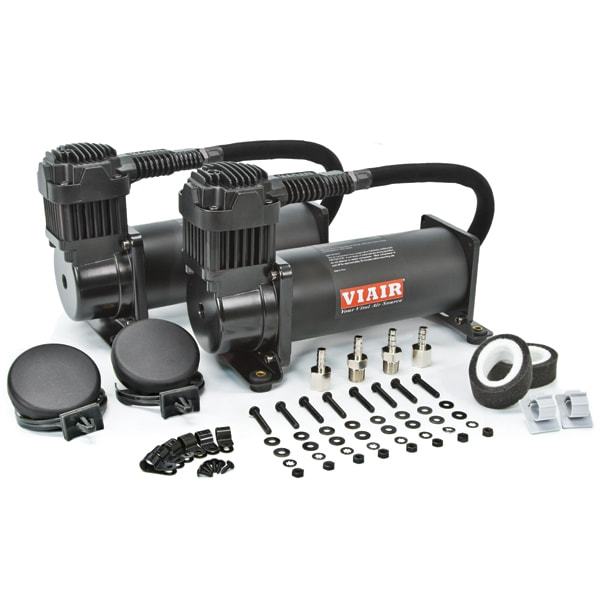

Included Parts:
- (2) 480C Stealth Black Compressors
- (2) Air Filter Assemblies
- (2) Remote Mount Brackets
- (2) Sets of Remote Mount Fittings
- (2) Sets of Spare Air Filter Elements
- (2) Leader Hose Clips
- (6) Air Line Clips with Included Hardware
- (8) Sets of Nuts, Bolts, Washers and Lock Washers
- (1) Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse)
- (2) Heavy Duty 40-Amp Relays
- (1) One Heavy Duty Pressure Switch (165 PSI on, 200 PSI off)
- (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
- Air Line (For Remote Mount Filter Installation)

- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI)
- Max. Working Pressure: 200 PSI
- Max. Air Tank Size: 10.0 Gallon
- Max. Amp Draw: 44 Amps
- Ingress Protection Rating: IP67
- Dimensions: 10.87"L x 4.2"W x 6.75"H (Each Unit)
- Net Weight: 22.10 lbs.

2.5 Gallon Tank Fill Rate 0 to 200 PSI 2 min. 22 sec. (± 10 sec.) 165 to 200 PSI 38 sec. (± 05 sec.) 5.0 Gallon Tank Fill Rate 0 to 200 PSI 5 min. 02 sec. (± 10 sec.) 165 to 200 PSI 1 min. 25 sec. (± 05 sec.) 10.0 Gallon Tank Fill Rate 0 to 200 PSI 10 min. 30 sec. (± 15 sec.) 165 to 200 PSI 3 min. 10 sec. (± 10 sec.)

PSI CFM A BAR LPM A 0 3.53 25 0 100.0 25 10 3.10 28 1.0 86.5 29 20 3.00 31 2.0 81.4 33 30 2.86 33 3.0 76.8 35 40 2.75 35 4.0 72.7 37 50 2.64 36 5.0 67.6 39 60 2.55 37 6.0 61.2 41 70 2.43 39 7.0 55.3 42 80 2.26 40 8.0 50.1 44 90 2.12 41 9.0 45.0 44 100 1.97 42 10.0 40.6 43 110 1.84 43 11.0 36.8 41 120 1.72 44 12.0 32.4 40 130 1.59 44 13.0 28.0 37 140 1.49 43 14.0 24.8 36 150 1.38 42   160 1.29 41   170 1.18 40   180 1.09 39   190 0.97 37   200 0.90 36 * Supply Voltage: 13.8 Volts

FREE SHIPPING TO LOWER 48 STATES

Illusive Design & Fabrications specializes in Air Ride Suspensions, and Metal Fabrication. With In House Custom Metal Works; CAD Drawings, CNC Plasma Cutting, Plate braking, MIG & TIG Welding, Tube Bending, and other Metal Art finishing processes, our production options are near endless. We use these products everyday on our own vehicles, so we know you are getting a quality part! Built by mini truckers for mini truckers!
